Specification | Detail |
|---|---|
Operating Voltage | 5V DC |
Working Current | About 15mA |
Frequency | 40kHz |
Measuring Range | 2 cm to 400 cm |
Accuracy | About 3 mm |
Measuring Angle | About 15° |
Trigger Input | 10 µs TTL pulse |
Pins | 4 (VCC, Trig, Echo, GND) |
Original price was: ₹129.00.₹89.00Current price is: ₹89.00.
99 in stock
99 in stock
Pick up from the Crazysaman Store To pick up today
Courier delivery Our courier will deliver to the specified address
59 INR
Shiprocket Courier delivery Shiprocket courier will deliver to the specified address
2-7 Days
59 INR
Payment Methods:

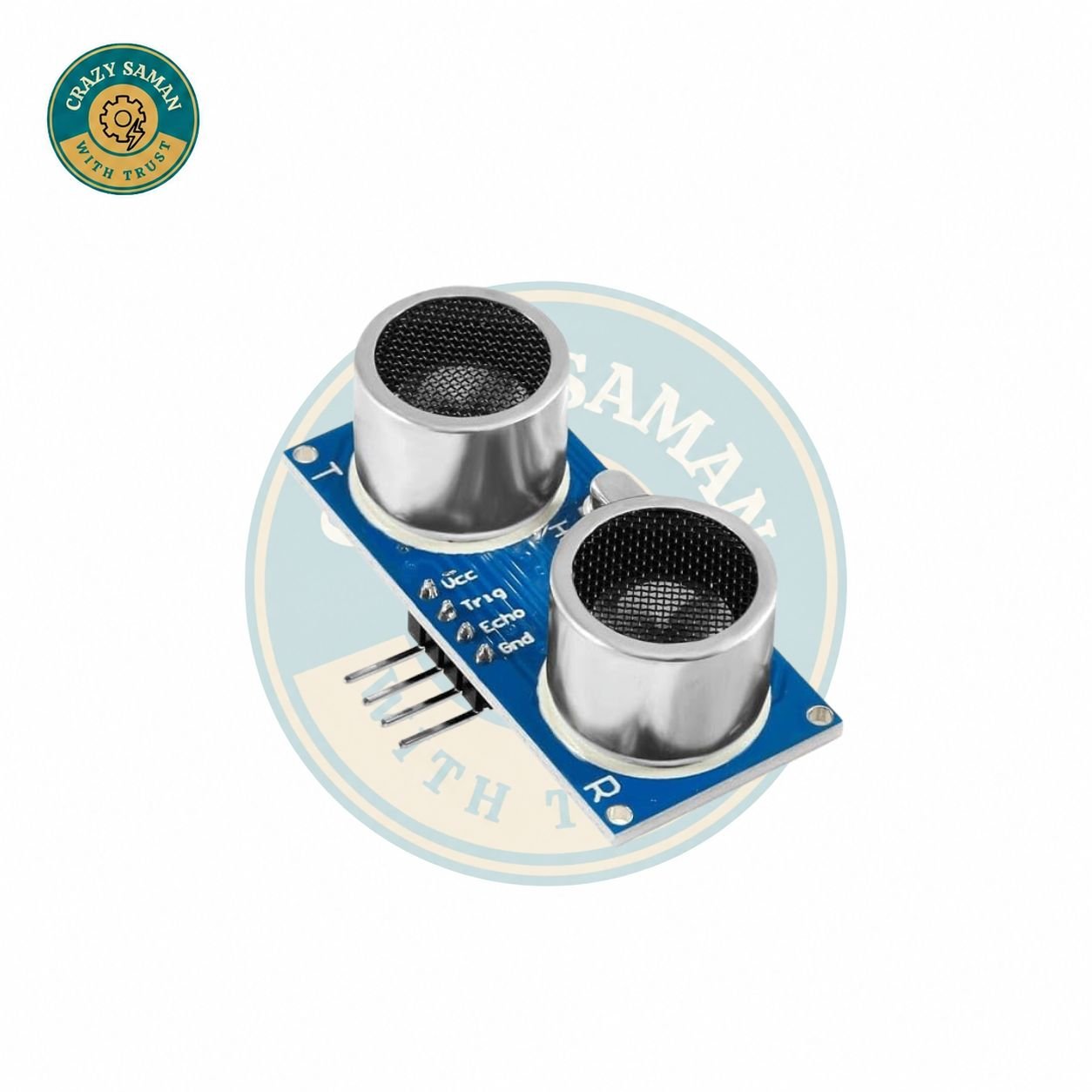

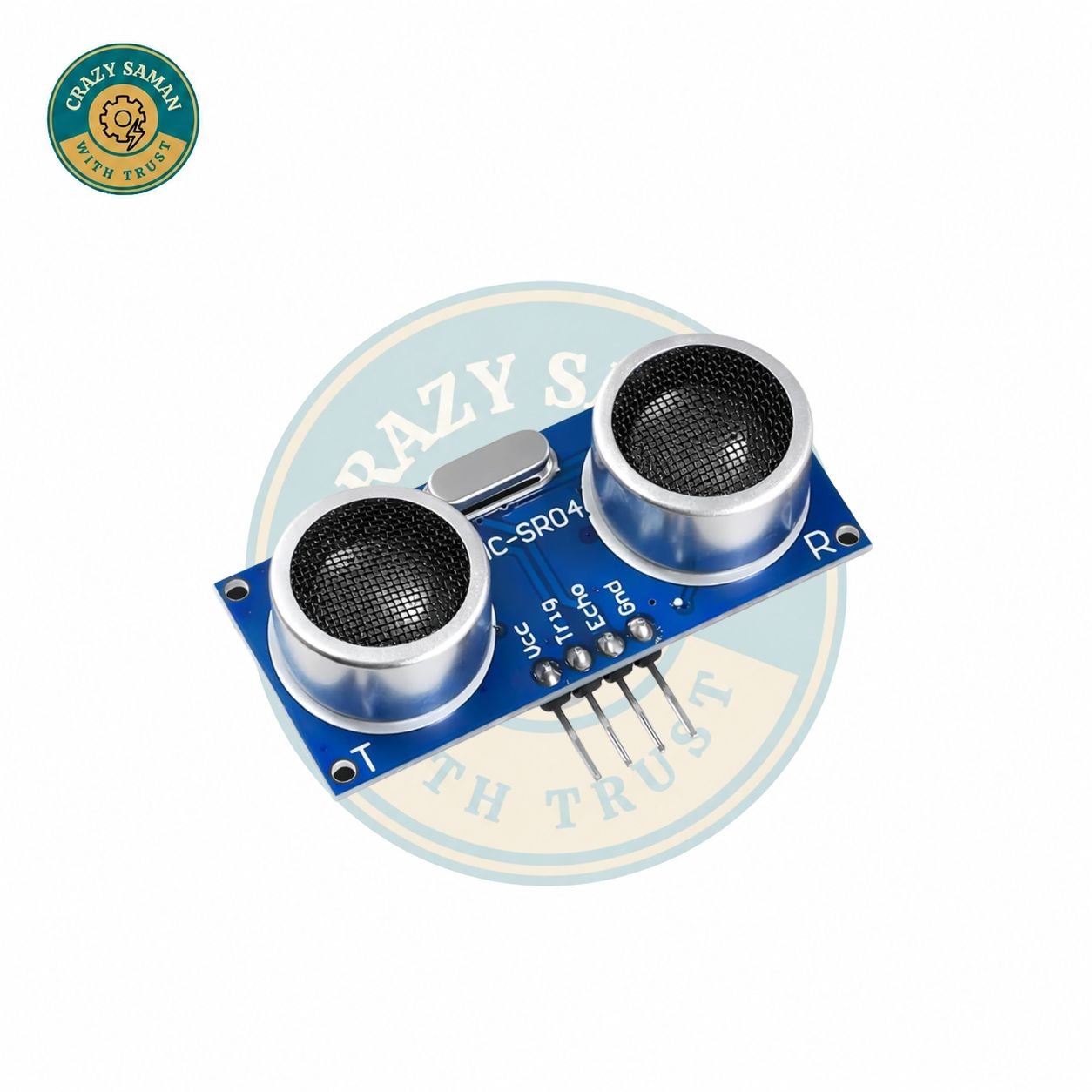

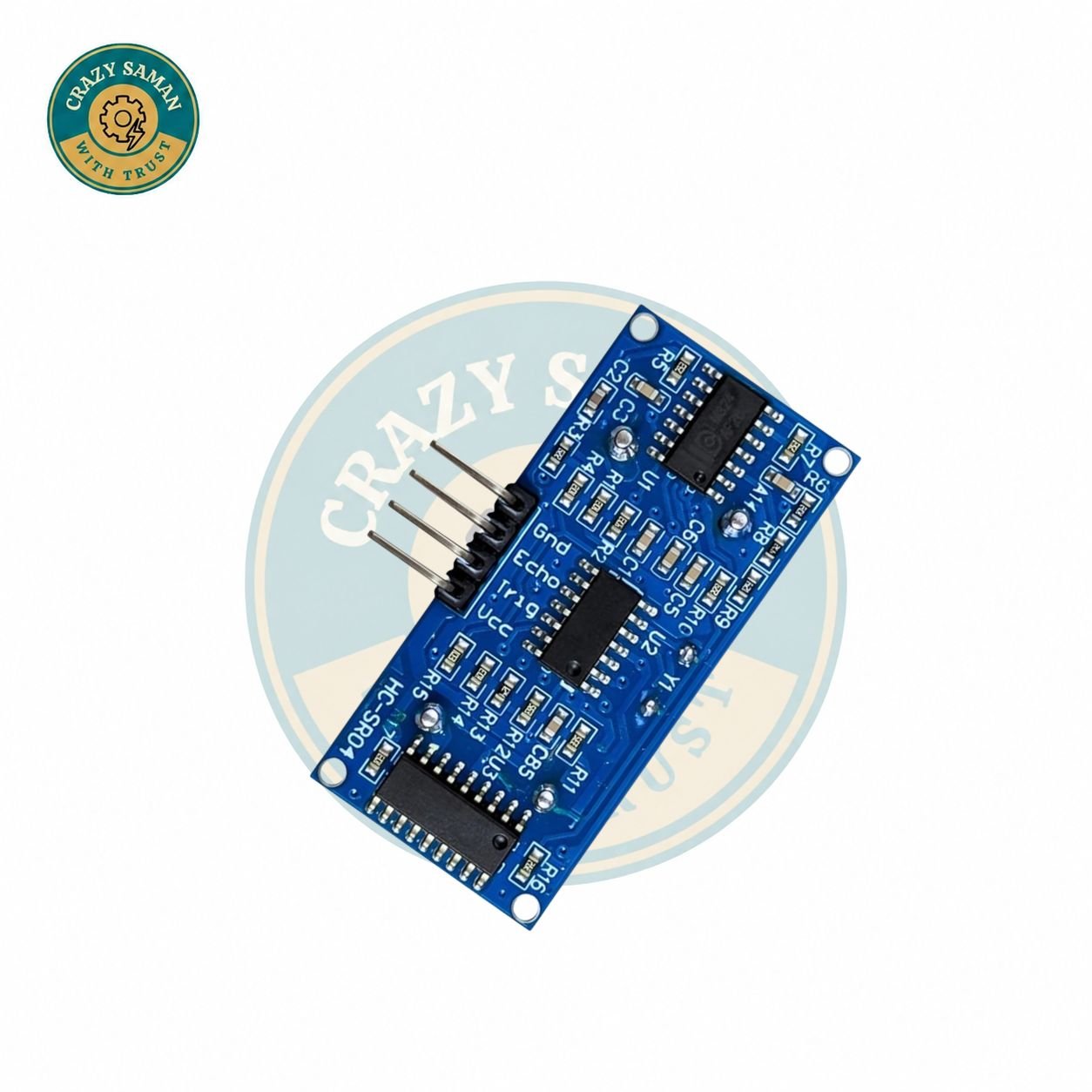

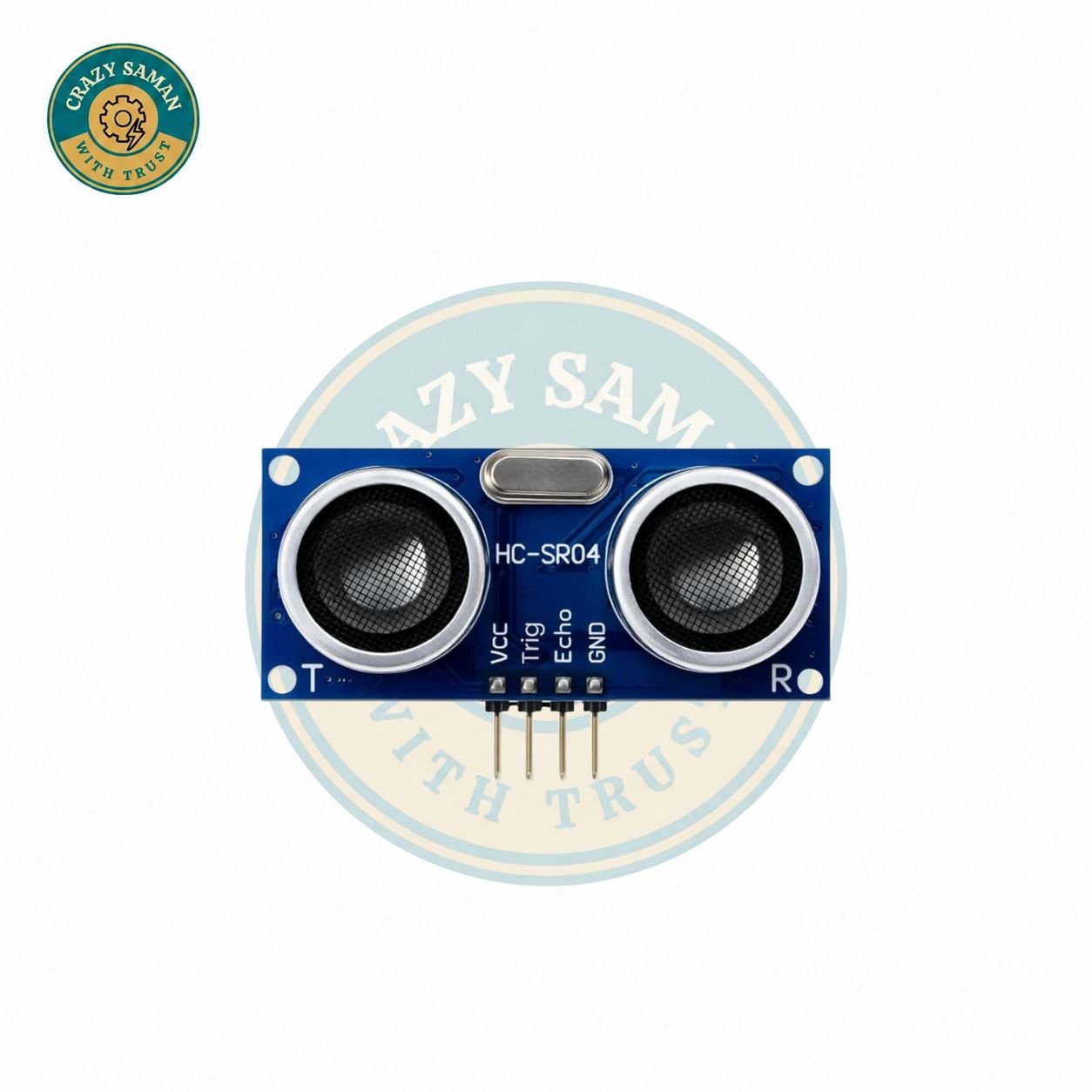

This ultrasonic sensor measures the distance to an object by sending out a sound pulse and timing how long the echo takes to return. Connect four wires to your Arduino, upload a short sketch, and you can read the distance in centimetres.
It is one of the most popular modules for robotics. You can build an obstacle-avoiding robot, a parking distance meter, a water level indicator or a contactless distance gauge. The module has a transmitter and a receiver side by side, and it works with Arduino, Raspberry Pi, and other microcontrollers. It is simple to code and easy to fit on a breadboard.
