Specification | Detail |
|---|---|
Operating Voltage | 3.3V to 5V DC |
Detection Wavelength | 760nm to 1100nm |
Detection Angle | About 60° |
Detection Distance | About 80 cm for a lighter flame |
Comparator IC | LM393 |
Output | Digital (DO) and Analog (AO) |
Sensitivity | Adjustable by knob |
Pins | 4 (VCC, GND, DO, AO) |
Indicators | Power LED and output LED |
Original price was: ₹79.00.₹48.00Current price is: ₹48.00.
99 in stock
99 in stock
Pick up from the Crazysaman Store To pick up today
Courier delivery Our courier will deliver to the specified address
59 INR
Shiprocket Courier delivery Shiprocket courier will deliver to the specified address
2-7 Days
59 INR
Payment Methods:

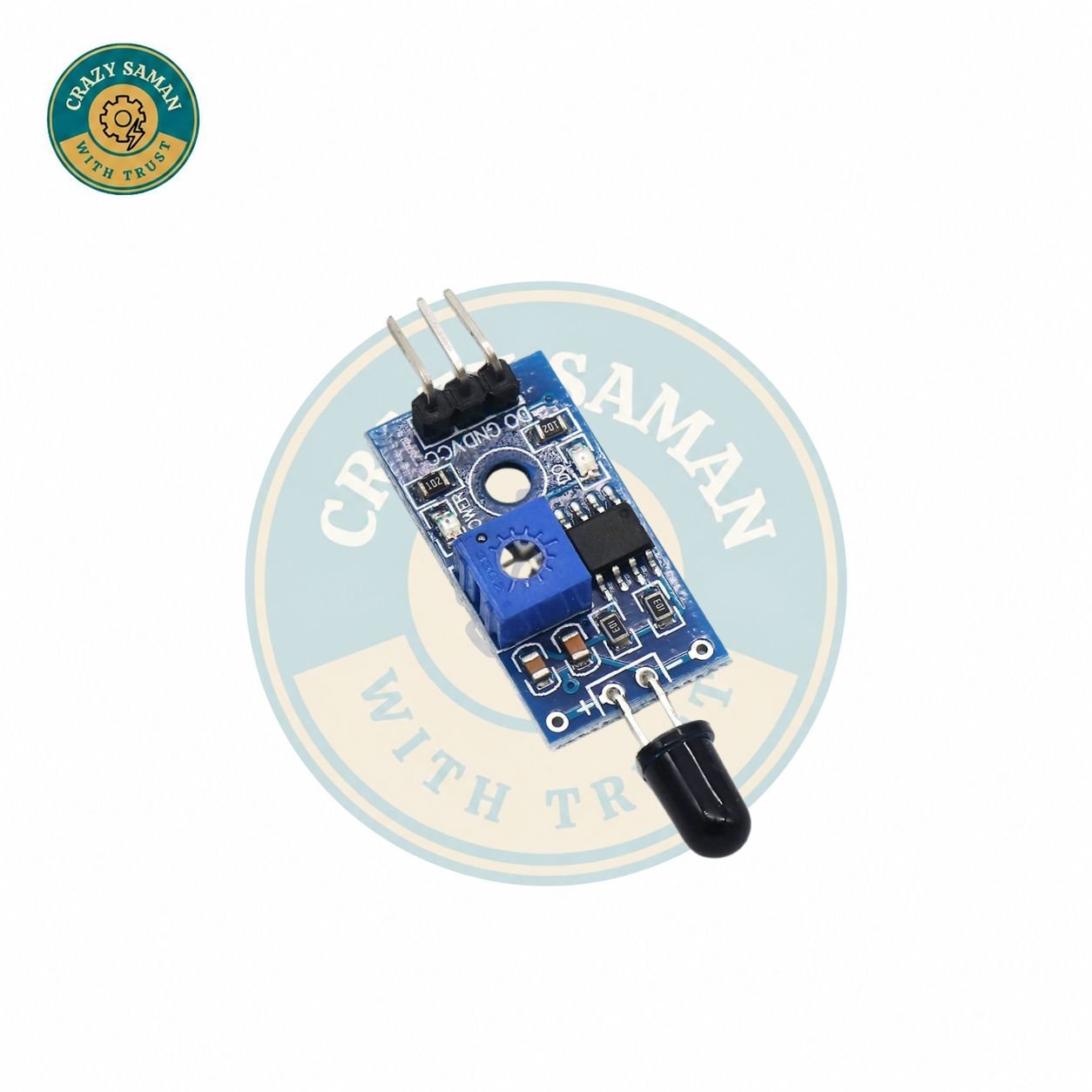

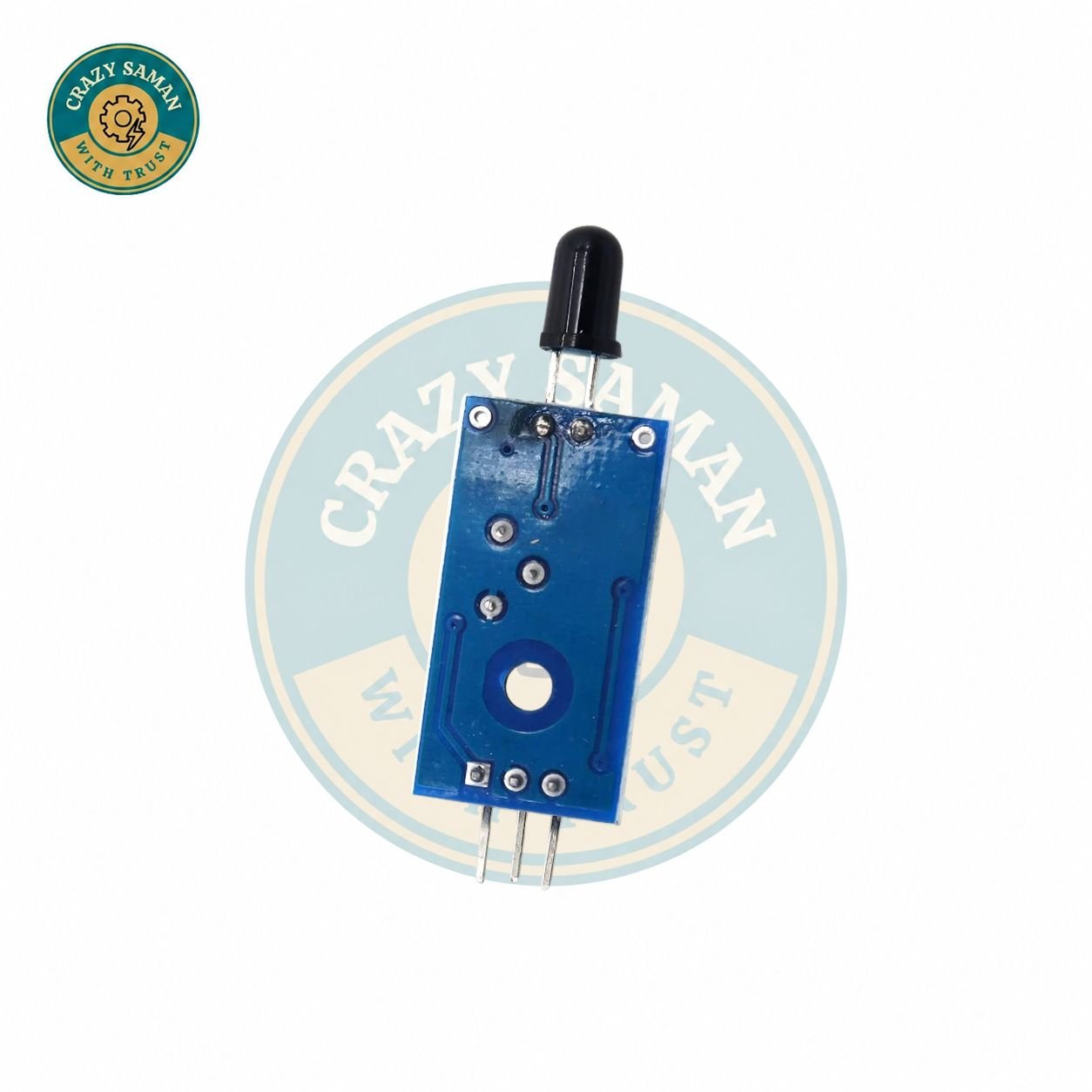

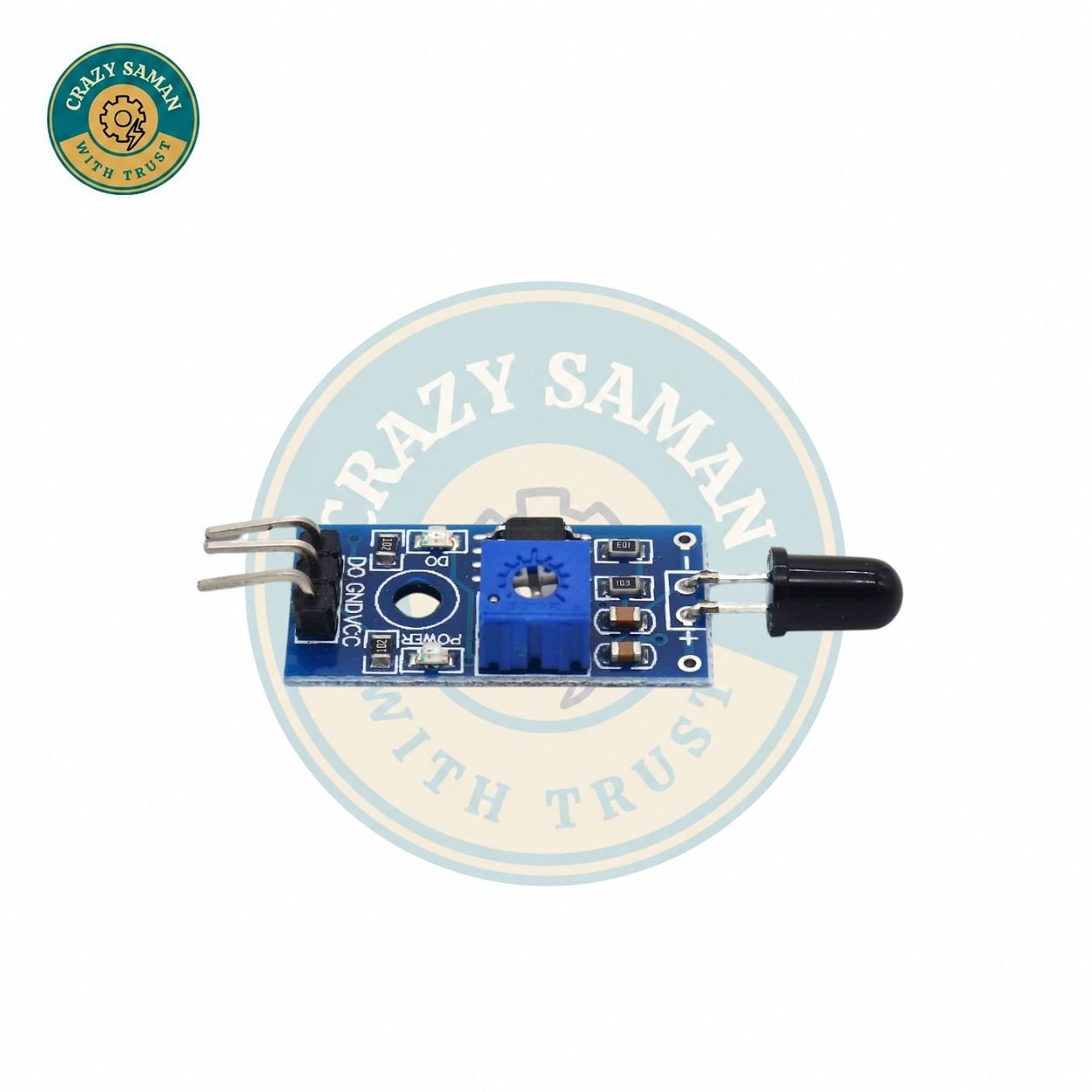

This flame sensor detects fire or a strong light source and sends a signal to your Arduino or other microcontroller. Connect the pins, upload a short sketch, and your project can react the moment a flame appears in front of the module.
It is a handy module for simple fire alarm projects, fire-fighting robots, gas stove safety demos, and school science exhibits. The board gives both digital and analog output, so you can either get a simple yes or no signal or read how close the flame is. A small knob on the board lets you adjust the sensitivity. It is meant for hobby and learning projects, so please do not use it as a replacement for a certified fire alarm.
